V-13-A

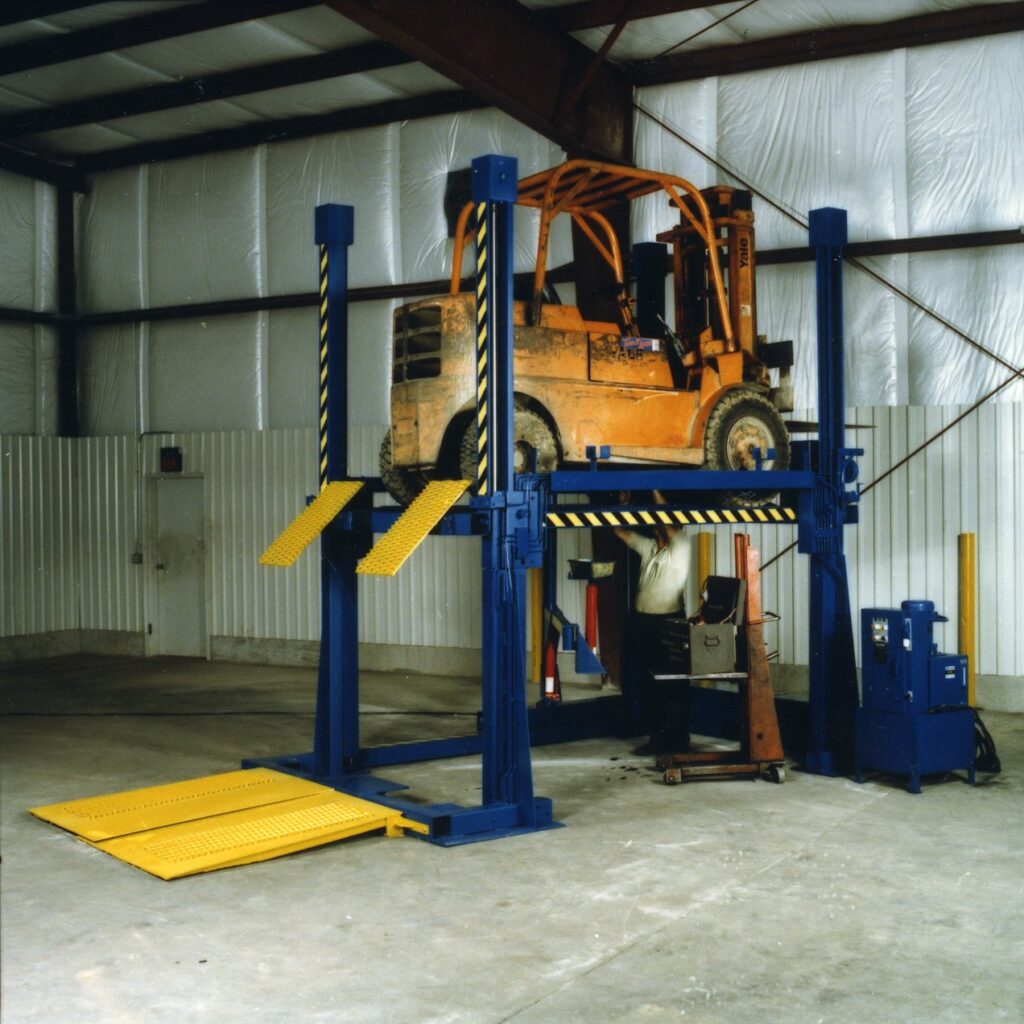

V-13-A Lift-A-Lift® Forklift Service Lift
The Lift-A-Lift® truck lift is portable with removable runwaypanels and floor beams for easier access. Standard 18 inch wide runways adjust hydraulically from 56″ to 76″ on the 20,000#, 30,000#, and 40,000# service lift. The width adjustment feature accommodates a wide range of industrial vehicles.
Specifications
Capacity: 13,000# G.V.W.
Entry width: 52″ to 68″
(specify 4″ increments)
Minimum ceiling height: 12’7″
Max runway height: 71″
safety locks: Automatic
Motor: 3hp
Power: 3-phase only
Shipping weight: 6200lbs.
16″ wide runways X 8′ long
20″ to 36″ inside working width
(specify 4″ increments)
Features
Portable, hydraulic lift
Auto safety locks
Auto self-leveling system
Lockable control panels
Shipped assembled and factory tested
Options
Hydraulic motor/transmission jack ramp – 10′ long
Pallet jack combo kit
(center ramp and 2 side rails)
Wheel-freeing device
Three-wheel platform
