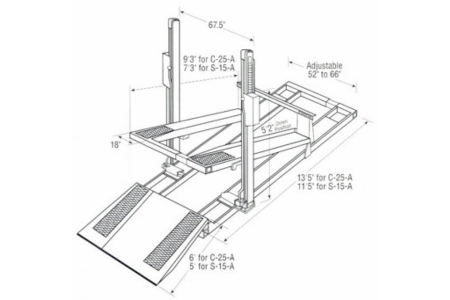

C-25-A Specifications

Specifications

Capacity: 25,000# G.V.W.
Lift beam length: 9′-3″
Lift width: 52″ to 66″
Maximum tilt angle: 60°
Power: 230/460/3/60
Shipping weight: 5,500#

Features

Portable hydraulic lift
18″ runways adjust from 52″ to 66″ (outside dimension)
Approach ramp: 6′ long
Automatic safety locks
Lockable control panel
Removable runway panel
Shipped assembled and factory tested

Options

Wheel-freeing device
Center ramp for 3-wheeled trucks
Ramp: 10′-0″ long
