Tipper Forklift Service Lift - Tilts Forklifts 90 Degrees
Fast, Safe, and Easy Forklift Maintenance.

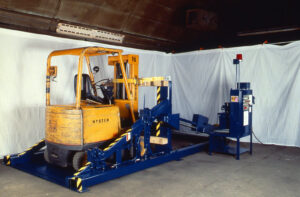

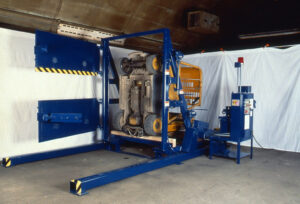

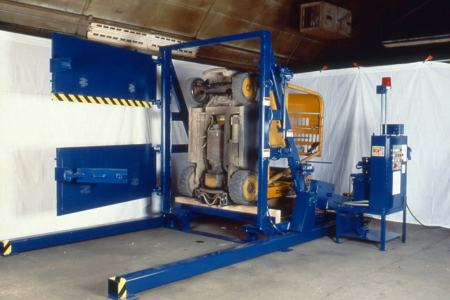

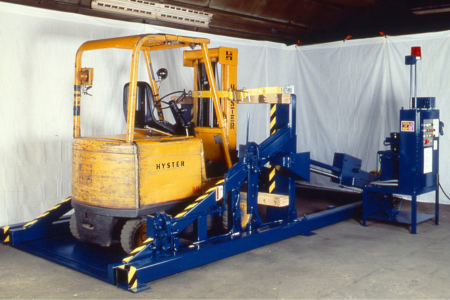

This revolutionary machine tilts lift trucks a full 90 degrees, thereby, offering unobstructed access to the entire vehicle underbody. Just drive the vehicle onto the tipper service, lift and let the tipper service lift do the rest. Nothing could be simpler, or more cost-effective. In fact, a major automotive supplier saved 1,576 maintenance hours on 40 electric trucks in a single year using the Tipper.
Requirements
The Tipper is made in the USA and complies with all applicable ANSI and OSHA requirements. Automatic safety pawls are incorporated in the design to prevent accidents in the event of hydraulic malfunction.
The Tipper requires very little floor space and is portable. Each unit is shipped assembled, factory tested and comes with a one-year warranty.
The Tipper service lift is one of the fine family of forklift service lifts available from Tilt-Or-Lift, Inc., the lift specialists.
There are no finer lifts available. Anywhere. US Patents # 4,966,517 & 5,478,191.

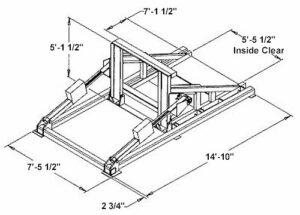

313-A Tipper® Forklift Service Lift Specifications
Specifications
• Weight Capacity: 13,000 lb. G.V.W. at 54” Overall Tread Width
• Length Clear: 85-1/2”
• Length Overall: 178”
• Width Clear: 65-1/2”
• Width Overall: 89-1/2” Closed Working
• Max. Tilt Angle: 90 Degrees
• Motor: 5 HP
• Power: 3 Phase
• Shipping Weight: 6,500 lbs.
• Height Overall: 103” (Tipped) 61-1/2” (Not Tipped)
All units are subject to change and modifications.
Note: Dimensions may change without notice.
U.S. Patent No. 4,966,517 and 5,478,191
Features
• Automatic Hydraulic Safety Locks
• Electrical Safety Interlock System
• Lockable Control Panel
• Safety Release Handle
• Shipped Assembled and Factory Tested
Options
For special sizes, contact us.
